Advantest R6144 Programmable DC Voltage/Current Source (Calibration Source)

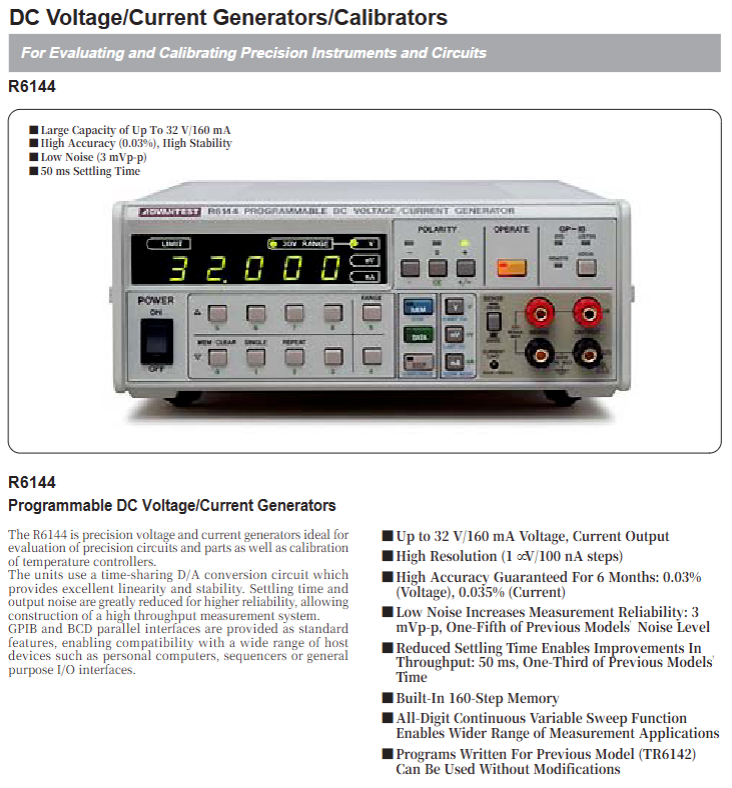

Core Key Features

Output capability: maximum ± 32   V/± 160   mA;

Resolution: Minimum voltage step of 1 µ V, minimum current step of 100 nA;

Accuracy (guaranteed for 6 months, 23 ℃± 5 ℃): voltage 0.03%, current 0.035%;

Noise: The total noise at full range is 3 mVp-p, which is reduced to 1/5 compared to the previous generation model;

Establishment time: Maximum 50 ms (0 → full scale, reaching target value ± 0.1%), 1/3 of the previous generation;

Storage and scanning: Built in 160 step memory; All digital continuous frequency scanning/scanning output;

Interface: GPIB, BCD-PARALLEL parallel interface;

Application scenarios: Precision circuit/component evaluation, temperature controller calibration, and automated testing system construction.

Output range specification

Voltage range

Range output range setting resolution

10 mV 0~±16.000 mV 1 µV

100 mV 0~±160.00 mV 10 µV

1 V 0~±1.6000 V 100 µV

10 V 0~±16.000 V 1 mV

30   V (R6144 exclusive) 0~± 32.000   V 2   mV

current range

Range output range setting resolution

1 mA 0~±1.6000 mA 100 nA

10 mA 0~±16.000 mA 1 µA

100 mA 0~±160.00 mA 10 µA

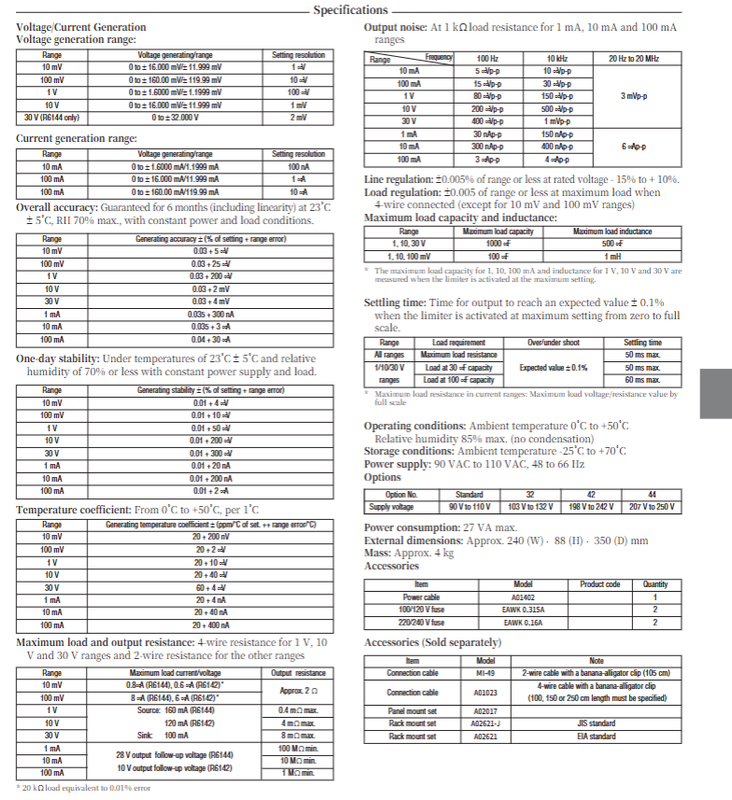

Accuracy, stability, temperature coefficient

Test conditions: 23 ℃± 5 ℃, humidity ≤ 70% RH, constant power supply and load.

6-month guarantee of accuracy: formula=± (percentage of set value+range error)

Voltage: 10   mV~30   V: 0.03%+range offset

Current: 1 mA/10 mA: 0.035%; 100 mA：0.04%

One day short-term stability: voltage 0.01%, current 0.01% basic error+range deviation; Suitable for short-term high-precision output.

Temperature coefficient (0~+50   ℃, every 1 ℃)

The voltage levels are mostly 20 ppm/℃, and the 30V level is 60 ppm/℃;

The total range of current is 20 ppm/℃+range offset term.

Output electrical performance

Output Impedance

Voltage range (1V/10V/30V) supports 4-wire Kelvin output, with extremely low output impedance (0.4   m Ω~8   m Ω);

The low voltage range of 10 mV and 100 mV is the 2-wire mode;

The current output impedance is very high (1   M Ω~100   M Ω), suitable for constant current output.

Output noise: Divided frequency range (100Hz, 10kHz, 20Hz-20MHz), maximum 3 mVp-p across the entire frequency band; Small current range nA level noise.

Power adjustment rate: ≤ ± 0.005% of the range;

Load adjustment rate: 4-wire mode ≤ range ± 0.005% (excluding 10mV/100mV).

Capacitive/inductive load capacity

Voltage range: maximum capacitance of 1000 µ F; maximum inductance of 500 µ H;

Small signal mV range: maximum capacitance of 100 µ F, inductance of 1 mH;

When carrying a large capacitive load, the setup time will be extended, with a maximum of 60 ms for a 100 µ F load.

Establishment time: Maximum load condition of 50 ms; 100 µ F capacitor load of up to 60 ms; criterion output converges to target value ± 0.1%.

Environment and Machinery

Working conditions: 0~+50 ℃, humidity ≤ 85% RH (no condensation);

Storage conditions: -25~+70 ℃;

Power supply selection (ordering options)

STD：90‑110VAC； Option32：103‑132VAC； Option42：198‑242VAC； Option44：207‑250VAC；

Power consumption: maximum 27   VA;

Dimensions: Width 240mm x Height 88mm x Depth 350mm; Weight approximately 4kg.

Key points of panel and hardware functions

Front panel: digital display screen, polarity switching Polarity, OPERATE output enable button; Memory storage, CLEAR clearing, SINGLE single scan, REPEAT repeated scan; Range button; Output terminal (4-wire banana holder).

Built in features:

160 step program memory, editable voltage/current sequence;

Single step execution, REPEAT loop scan output;

Polarity switching; Hardware output limit protection.

Standard interfaces: GPIB (IEEE-488), BCD parallel interface, realizing programmable automation testing; The old model TR6142 program is directly compatible without modification.

Accessories and Optional Parts

Standard accessories

power cord; Two fuses of different voltage specifications each.

Select accessories separately

MI-49: 2-wire banana crocodile clip cable (105cm);

A01023:4 Kelvin test cable with optional length of 100/150/250 cm;

Panel installation kit A02017;

Rack kit: A02621-J (JIS standard), A02621 (EIA standard cabinet).

Selection Summary

R6144 advantages: high accuracy of 0.03%, low noise, fast setup time, support for 4-wire Kelvin, 160 step sequence, GPIB programmable; Maximum output of 32   V/160   mA; suitable for calibration sources and ATE testing of precision devices.

Attention: The 10 mV and 100 mV ranges only support two-wire output, resulting in greater load effects; Large capacity loads will prolong the establishment time; Attention should be paid to temperature drift, and high-precision measurement should try to control the ambient temperature as much as possible.
